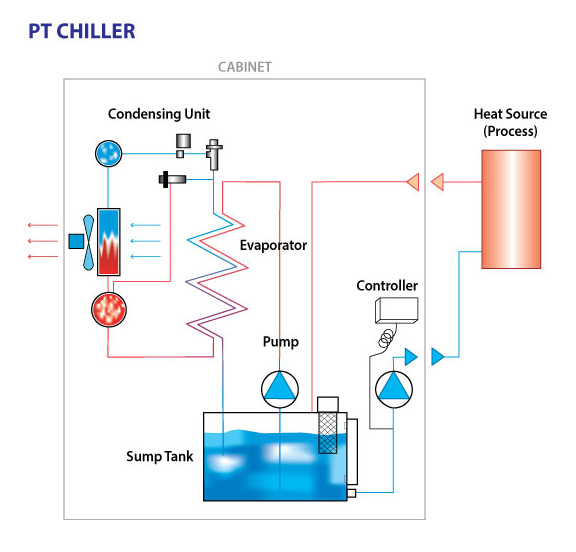

The PT Model Chiller Uses Two pumps with one process tank. One pump circulates coolant through the evaporator to maintain a constant tank temperature, while a second pump circulates coolant from the process tank (on-board chiller) through the process and then back to the process tank.
NOTE: This information is being presented as a guideline only. Your specific application, options and requested features may alter the specifications. Please confirm all specifications with Turmoil.
| MODEL | RATED COOLING CAPACITY* | COMP. | STANDARD PUMP CAPACITY | TANK CAPACITY*** |
STANDARD VOLTAGE** | |||
|---|---|---|---|---|---|---|---|---|
| WATER | BTU/hr | Kcal/hr | hp | gpm | lpm | gal. | ltr. | |
| OC-25PT | 3000 | 625 | 1/4 | 1.6 | 6 | - | - | V1, V3 |
| OC-33PT | 4000 | 825 | 1/3 | 1.6 | 6 | - | - | V1, V3 |
| OC-50PT | 6000 | 1500 | 1/2 | 2.5 | 9 | - | - | V1, V3 |
| OC-75PT | 9000 | 2000 | 3/4 | 4 | 15 | - | - | V1, V3 |
| OC-100PT | 12000 | 3000 | 1 | 6 | 23 | - | - | V2, V3 |
| OC-150PT | 18000 | 4500 | 1 1/2 | 8 | 30 | - | - | V6, V8, V10 |
| OC-200PT | 24000 | 6000 | 2 | 8 | 30 | - | - | V6, V8, V10 |
| OC-300PT | 36000 | 9000 | 3 | 12 | 45 | - | - | V6, V8, V10 |
| OC-400PT | 48000 | 12000 | 4 | 16 | 60 | - | - | V6, V8, V10 |
| OC-500PT | 60000 | 15000 | 5 | 20 | 75 | - | - | V6, V8, V10 |
| OC-750PT | 90000 | 22500 | 7 1/2 | 30 | 112 | - | - | V6, V8 |
| OC-1000PT | 120000 | 30000 | 10 | 40 | 150 | - | - | V6, V8 |
| OC-1500PT | 180000 | 45000 | 15 | 60 | 225 | - | - | V6, V8 |
| OC-2000PT | 24000 | 60000 | 20 | 80 | 300 | - | - | V6, V8 |
| OC-2500PT | 300000 | 75000 | 25 | 100 | 375 | - | - | V6, V8 |
| OC-3000PT | 360000 | 90000 | 30 | 120 | 450 | - | - | V6, V8 |
*Capacities based on coolng water to 60°F (16°C) in a 90°F (32°C) ambient.
**Refer to chart below.
***Contact our engineers for tank capacity information.
Please download our catalog or contact us for dimensions and shipping weight.
| STANDARD VOLTAGE | |
|---|---|
| V0 | 100/50/1 |
| V1 | 115/60/1 |
| V2 | 200/50/1 |
| V3 | 208-230/60/1 |
| V4 | 208-230/60/1, 200/50/1 |
| V5 | 200-240/50/3 |
| V6 | 208-230/60/3 |
| V7 | 380-420/50/3, 460/60/3 |
| V8 | 460/60/3 |
| V9 | 575/60/3 |
| V10 | 200-240/50/3, 208-230/60/3 |
| VC | Custom Voltage Contact our engineers for more information. |
NOTE: This information is being presented as a guideline only. Your specific application, options and requested features may alter the specifications. Please confirm all specifications with Turmoil.
| MODEL | RATED COOLING CAPACITY* | COMP. | STANDARD PUMP CAPACITY | TANK CAPACITY*** |
STANDARD VOLTAGE** | |||
|---|---|---|---|---|---|---|---|---|
| OIL | BTU/hr | Kcal/hr | hp | gpm | lpm | gal. | ltr. | |
| OCO-25PT | 2500 | 625 | 1/4 | 1.5 | 5.6 | - | - | V1, V3 |
| OCO-33PT | 3300 | 825 | 1/3 | 1.5 | 5.6 | - | - | V1, V3 |
| OCO-50PT | 5000 | 1500 | 1/2 | 2.5 | 9.5 | - | - | V1, V3 |
| OCO-75PT | 8000 | 2000 | 3/4 | 5 | 19 | - | - | V1, V3 |
| OCO-100PT | 12000 | 3000 | 1 | 8 | 30 | - | - | V1, V3 |
| OCO-150PT | 18000 | 4500 | 1 1/2 | 8 | 30 | - | - | V6, V8 |
| OCO-200PT | 24000 | 6000 | 2 | 12 | 45 | - | - | V6, V8 |
| OCO-300PT | 36000 | 9000 | 3 | 18 | 68 | - | - | V6, V8 |
| OCO-400PT | 48000 | 12000 | 4 | 24 | 90 | - | - | V6, V8 |
| OCO-500PT | 60000 | 15000 | 5 | 30 | 112 | - | - | V6, V8 |
| OCO-750PT | 90000 | 22500 | 7 1/2 | 40 | 150 | - | - | V6, V8 |
| OCO-1000PT | 120000 | 30000 | 10 | 50 | 190 | - | - | V6, V8 |
| OCO-1500PT | 180000 | 45000 | 15 | 75 | 280 | - | - | V6, V8 |
| OCO-2000PT | 24000 | 60000 | 20 | 100 | 375 | - | - | V6, V8 |
| OCO-2500PT | 300000 | 75000 | 25 | 125 | 470 | - | - | V6, V8 |
| OCO-3000PT | 360000 | 90000 | 30 | 150 | 560 | - | - | V6, V8 |
*Capacities based on coolng oil to 80°F (28°C) in a 90°F (32°C) ambient.
**Refer to chart below.
***Contact our engineers for tank capacity information.
Please download our catalog or contact us for dimensions and shipping weight.
| STANDARD VOLTAGE | |
|---|---|
| V0 | 100/50/1 |
| V1 | 115/60/1 |
| V2 | 200/50/1 |
| V3 | 208-230/60/1 |
| V4 | 208-230/60/1, 200/50/1 |
| V5 | 200-240/50/3 |
| V6 | 208-230/60/3 |
| V7 | 380-420/50/3, 460/60/3 |
| V8 | 460/60/3 |
| V9 | 575/60/3 |
| V10 | 200-240/50/3, 208-230/60/3 |
| VC | Custom Voltage Contact our engineers for more information. |
The PT Model Chiller Uses Two pumps with one process tank. One pump circulates coolant through the evaporator to maintain a constant tank temperature, while a second pump circulates coolant from the process tank (on-board chiller) through the process and then back to the process tank.
CTC: Digital Temperature Controller: Provides close temperature control (±0.5°F). Displays bot set-point and coolant temperature.
ATC: Ambient Tracking Controller. A dual input digital tempertue controller allows the coolant temperature to track ambient temperature at a constant, adjustable differential. Displays both ambient and coolant temperature.
OP: Optional Pumps. A variety of pumps are available to meet almost any flow and pressure requirement for both water and oil-based coolants.
LF: Low Flow Interlock. Prevents damage to machine on loss of flow.
HT: Temperature Fault Interlock. Indicates coolant temperature is out of range.
ILH: In-Line Heater. Warms up coolant to optimum operating termperature.
ILF: In-Line Filter Insures clean coolant.
PS: Pure System. Coolant only comes in contact with stainless steel or plastic.
Non-Copper. Oil only comes in contact with iron or stainless steel.
NRCW and NRCA: Non-Refrigerated Cooler. Uses central chilled water or ambient air instead of refrigeration. Saves space and maintenance.
W: Water-Cooled Condenser For use with tower or city water. Removes heat from the work area while saving space and maintenance.
FOR FASTEST SERVICE: fill out this form.
TURMOIL COOLER FEATURES
Heavy-Duty Construction. Coolers are designed for continuous industrial duty and dependable long life. Welded steel cabinet features lifting eyebolts and mounting skid. Panels are easily removable for complete access.
High-Ambient Condensers. Oversized to run cool in hot, dirty environments. All condensers are protected with a cleanable aluminum air intake filter.
Ozone-Friendly Refrigerants. Turmoil coolers use only approved, non-ozone-depleting refrigerants.
Complete Temperature Control. Choice of analog or digital controllers available with options to hold coolant within ±0.5ºF (±0.25ºC) of set-point. Hot gas bypass unloading eliminates compressor short cycling.
Super-Efficient Evaporators. For both oil- or water-based fluids. Brazed plate, immersion coil, or shell-and-tube design of stainless steel, copper, or steel construction depending on application. Tested for 350 PSI working pressure.
